2HP Electric Motor 1725RPM 143/5T Frame Air Compressor Motor Single Phase
This page is affiliate-supported. Prices and availability can change after the last marketplace refresh.
About this product

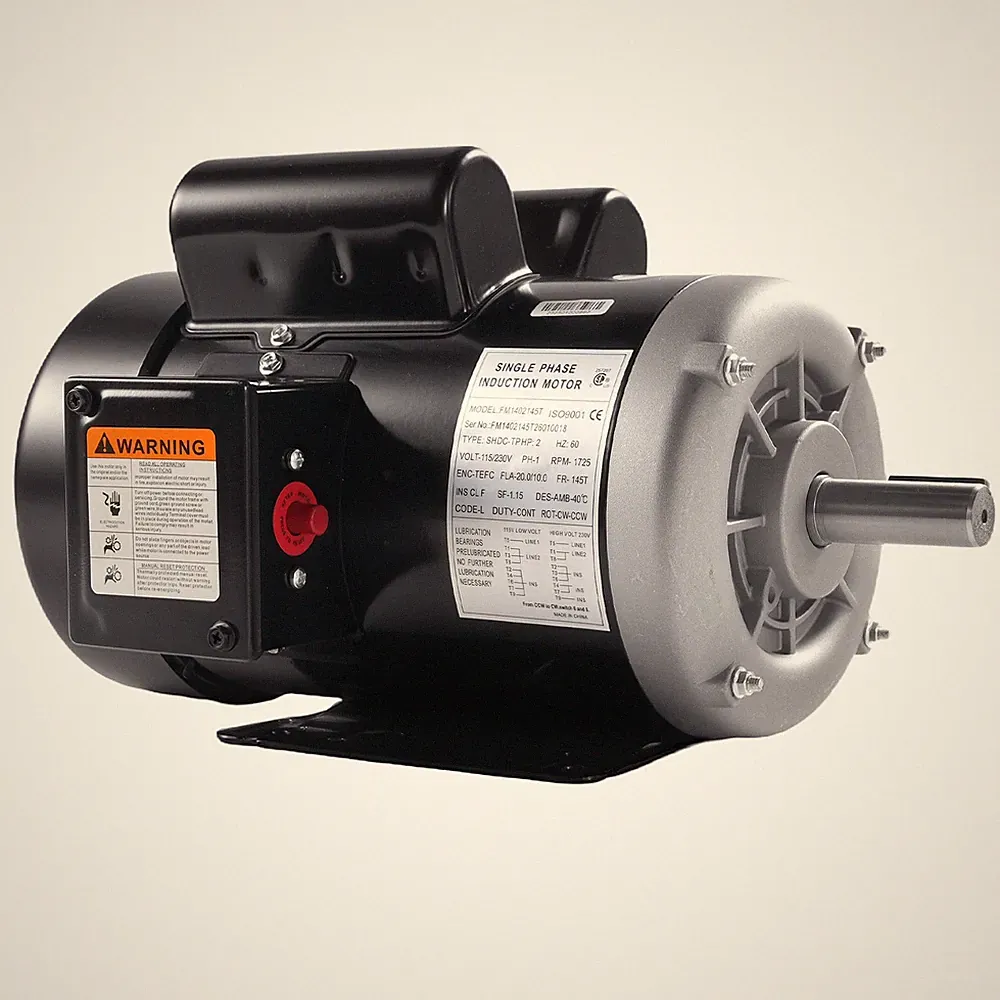

This MaXpeedingrods 2HP electric motor is specifically designed for air compressors, featuring a 1725 RPM speed and a 143/5T frame with a 5/8" shaft. It's a single-phase unit, compatible with 115V/230V AC at 60Hz. The motor comes with an Open Drip Proof (ODP) enclosure, includes manual reset overload protection, and is covered by a 2-year manufacturer warranty. It's presented as an aftermarket replacement part.
Our take
This 2HP electric motor by MaXpeedingrods offers a practical solution for replacing an air compressor motor. The dual voltage capability (115V/230V) is a great feature for versatility, and the 1725 RPM is suitable for many compressor applications. Manual reset overload protection is a definite plus for safety. The Open Drip Proof enclosure means it's best for indoor, relatively clean environments, so consider your workshop conditions. As an aftermarket part with no instructions included, some technical competence is required for installation, but the 2-year warranty provides reassurance for the purchase.
Pros & Cons
Pros
- 2 HP rated load
- Dual voltage (115V/230V)
- 2-year manufacturer warranty
- Manual reset overload protection
Cons
- Open Drip Proof (ODP) enclosure
- No instruction included
- Non-reversible rotation
Specifications
- AC Frequency Rating 60HZ
- AC Phase Single Phase
- Actual Rated Input Voltage 115 / 230V
- Base RPM 1725 RPM
- Brand MaXpeedingrods
- California Prop 65 Warning California Prop 65 Warning
Show all 35 specifications
- Country of Origin
- China
- Current Type
- AC
- Enclosure Type
- Open Drip Proof (ODP) Enclosure
- Features
- Manual Reset Overload Protection
- Frame Size
- 143/5T
- Full Load Amps
- 20.5A/10.5A
- INS.CL
- F
- Manufacturer Part Number
- UMI6VL
- Manufacturer Warranty
- 2 Year
- Model
- 2 HP Electric Motor
- Nominal Rated Input Voltage
- 115 V, 230 V
- Note
- No Instruction Included
- Notice
- This is aftermarket replcement part., California Prop 65 Warning.
- Overall Height
- 8.27"
- Overall Length With Shaft:
- 14.17"
- Overall Width
- 9.06"
- Phase
- Single Phase
- Quantity
- 1 x 2HP Electric Motor
- Rated Load (HP)
- 2 HP
- Reversible/Non-Reversible
- Non-Reversible
- Rotation Direction
- CCW Rotation Facing Shaft
- Service Factor
- 1.15
- Shaft Diameter
- 5/8"
- Shaft Length
- 1.88"
- Shaft Type
- Keyed
- Standard Size Keyway
- 3/16"
- Surface Finish
- Brand New
- Unit Quantity
- 1
- Unit Type
- Electric Motor
