5HP 3450 Rpm Air Compressor Motor 56283138 Fits Ingersoll Rand 230V 7/8'' Shaft
This page is affiliate-supported. Prices and availability can change after the last marketplace refresh.
About this product

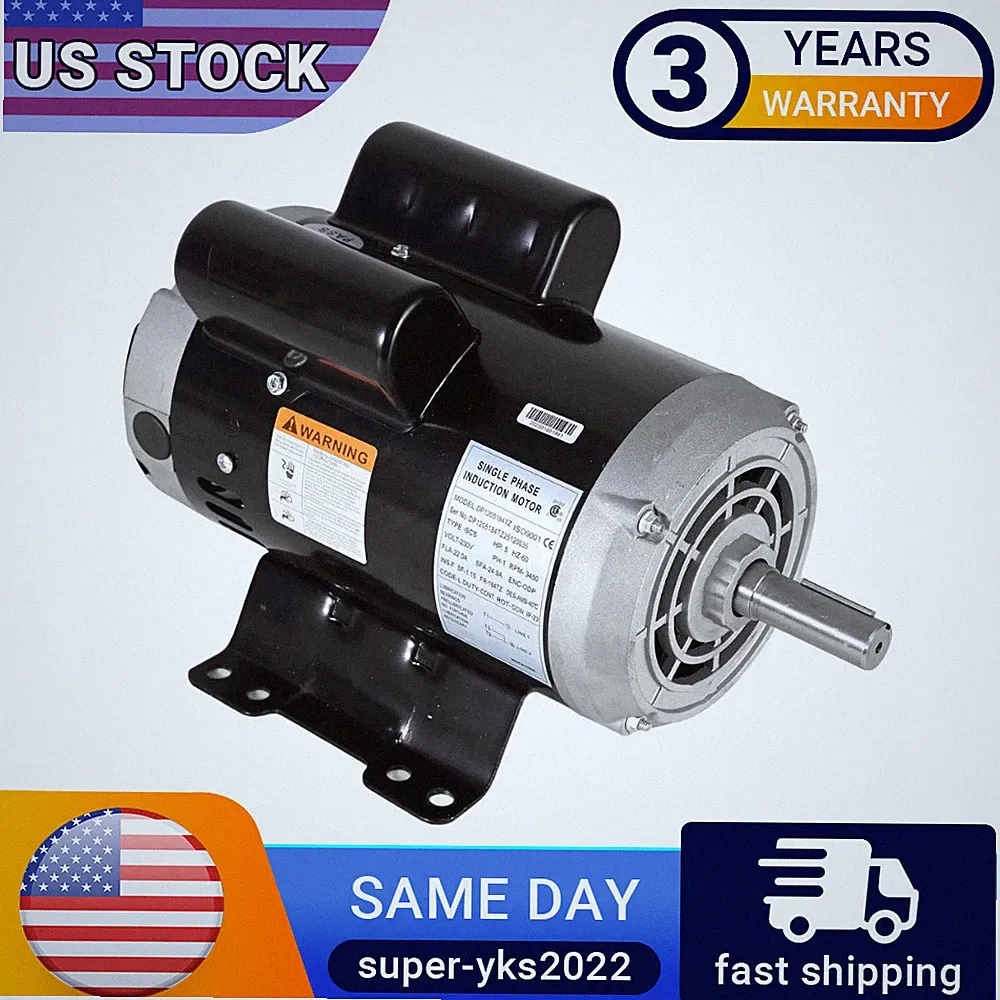

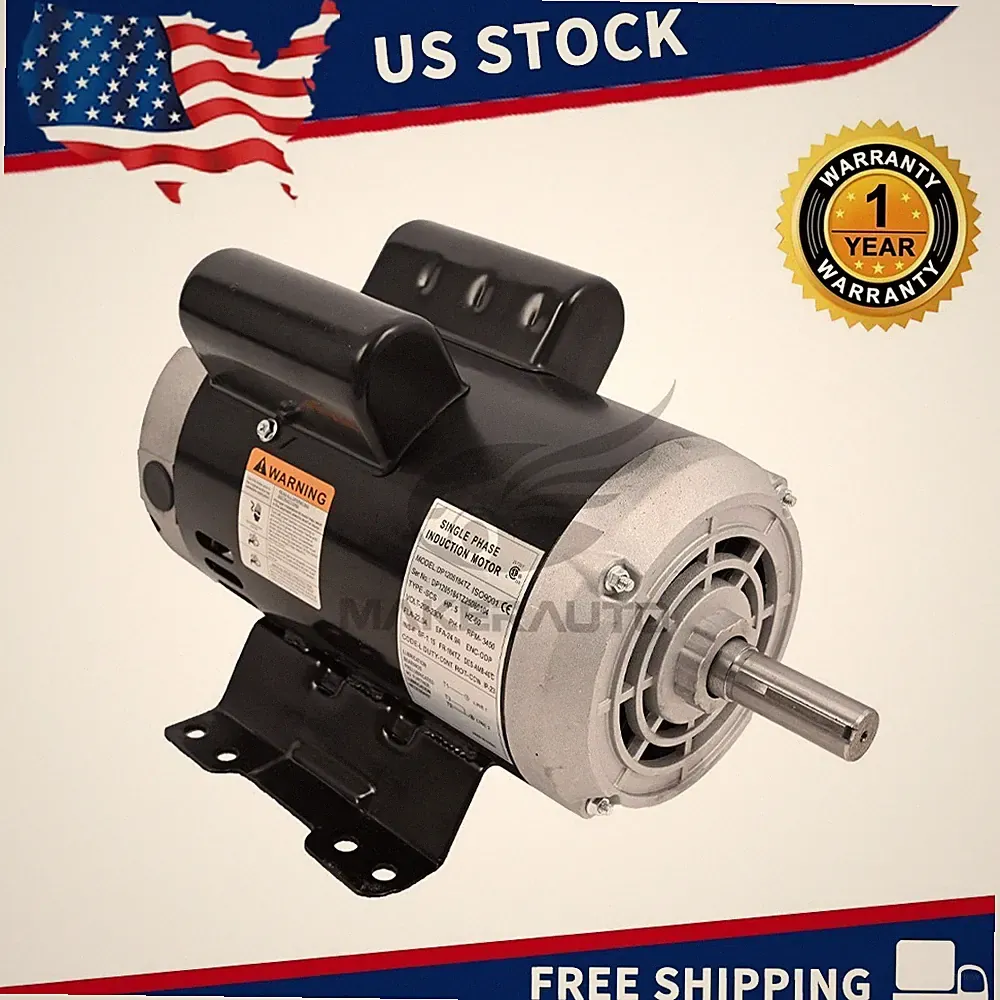

This is a 5HP single-phase air compressor motor designed for Ingersoll Rand units, operating at 230V and 3450 RPM. It features a 7/8'' x 2 1/4'' shaft with a keyway, housed in a 184T frame. The motor is drip-proof (DP) and has a Service Factor of 1.15, indicating its capacity for handling occasional overloads. With a 60 Hz AC frequency rating and a 1-year manufacturer warranty, it's suitable for various applications requiring a reliable 5HP motor replacement.
Our take
If you're looking for a direct replacement for an Ingersoll Rand compressor motor, this 5HP unit operating at 230V and 3450 RPM looks like a solid choice. The 7/8'' shaft and 184T frame should align with many existing setups, making installation straightforward. The 1.15 service factor is a nice touch, offering a little extra peace of mind for demanding tasks. However, the 1-year warranty is fairly standard; some might prefer a longer coverage period for a critical component like this. It's a drip-proof enclosure, so plan your installation location accordingly.
Pros & Cons
Pros
- 5HP motor for robust performance
- 3450 RPM high-speed operation
- 230V single-phase compatibility
- 7/8'' shaft with keyway for fit
- 1.15 Service Factor
Cons
- 1-year manufacturer warranty is limited
- Drip-proof enclosure, not fully sealed
Specifications
- Shaft Size 7/8" x 2 1/4" with Keyway
- Frame 184T
- Shaft height 4.5" (Measured to Shaft Center)
- FLA 24.9
- Frame Size 184T
- Part Number 2 CC1021885 23378805 23220064 56283138
Show all 18 specifications
- Manufacturer Warranty
- 1 Year
- Manufacturer Part Number
- 56283138, 23378805, 23220064, 54421193
- Brand
- maker
- Rated Load (HP)
- 5
- AC Phase
- Single Phase
- Nominal Rated Input Voltage
- 230 V
- Service Factor
- 1.15
- Shaft Diameter
- 7/8''
- AC Frequency Rating
- 60 Hz
- Enclosure Type
- DP (Drip-Proof)
- Actual Rated Input Voltage
- 230V
- Base RPM
- 3450
