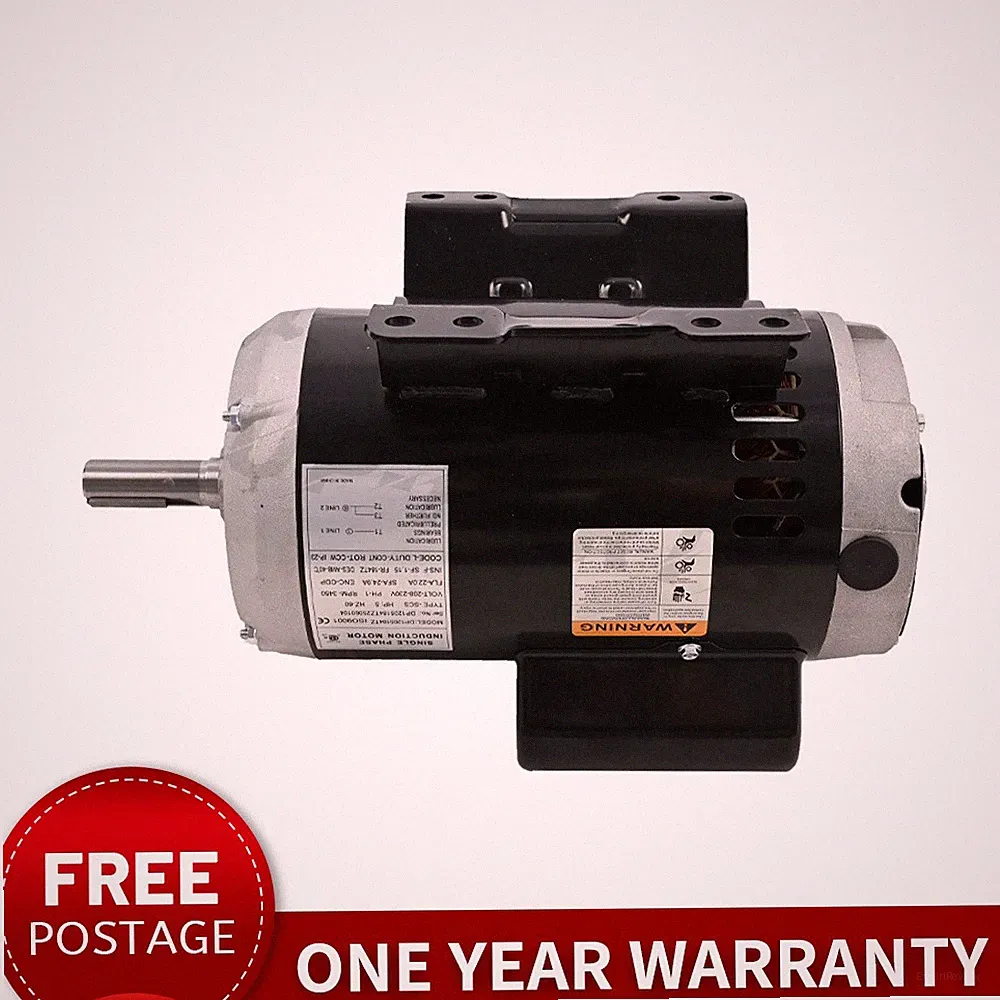

5HP SPL 1 Phase 3450RPM Electric Air Compressor Motor 56HZ 7/8" Shaft CCW
This page is affiliate-supported. Prices and availability can change after the last marketplace refresh.
About this product
This is a 5 HP SPL single-phase electric air compressor motor designed for heavy-duty applications, operating at 3450 RPM. It features a 7/8-inch shaft with a counter-clockwise rotation and a 56HZ NEMA frame size. The motor runs on 230 volts AC at 15 amps and is constructed with a rolled steel shell. With an IP23 rating and ODP enclosure type, it's suitable for various compressor setups.
Our take
If you're looking for a robust replacement motor for your air compressor, this 5 HP SPL unit offers solid specifications. The 3450 RPM speed and 230V single-phase power make it a strong contender for demanding tasks. I appreciate the rolled steel shell, which suggests good durability. However, the IP23 rating and ODP enclosure mean it's best suited for environments where it won't be exposed to excessive moisture or dust. The 7/8-inch shaft is fairly common, but always double-check your existing pump's requirements.
Pros & Cons
Pros
- Powerful 5 HP SPL motor
- High 3450 RPM speed
- Durable rolled steel shell
- Single-phase 230V operation
Cons
- IP23 rating limits outdoor use
- ODP enclosure not fully sealed
- Fixed CCW rotation
Specifications
- Country of Origin United States
- Brand findmall
- MPN LAW207612
- Type Air Compressor Motor
- Nominal Rated Input Voltage 230 Volts (AC)
- Rotation CCW
Show all 23 specifications
- Horsepower (HP)
- 5 HP SPL
- Shaft Diameter
- 7/8 in
- Shaft Length
- 2.25in
- AC Phase
- Single Phase
- Amps
- 15A
- NEMA Frame Size
- 56HZ
- Rated RPM
- 3450 RPM
- IP Rating
- IP23
- Meterial
- Rolled steel shell
- Enclosure Type
- ODP
- Motor Size
- 12.28*6.5*7.95
- Synchronous Speed
- 3600
- AC Frequency Rating
- 60 Hz
- POLE
- 2
- Current Type
- AC
- Insulation Class
- F (Max 311°F)
- Manufacturer Warranty
- 1 Year
