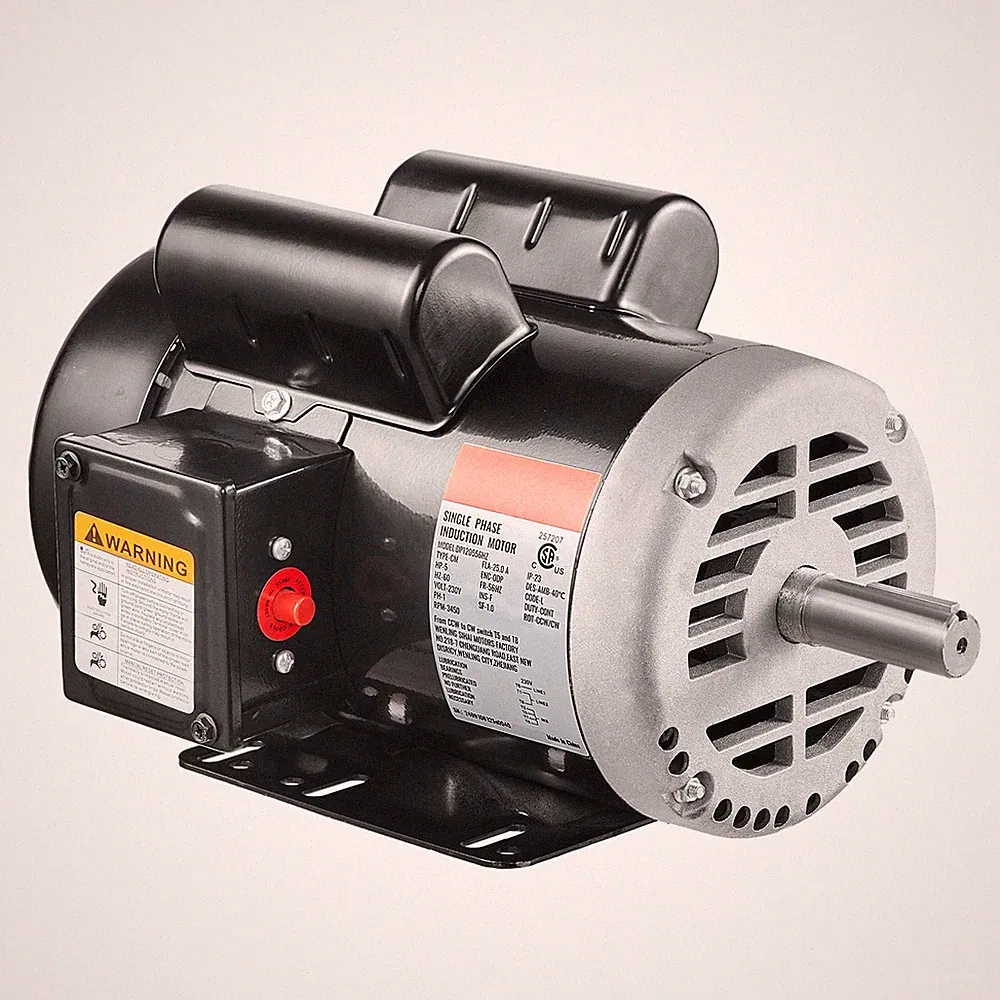

Uimoso 5HP Air Compressor Electric Motor 230V 3450RPM 56Hz Frame CW/CCW Rotation
This page is affiliate-supported. Prices and availability can change after the last marketplace refresh.
About this product
The Uimoso 5HP Air Compressor Electric Motor is a single-phase, 230V induction/asynchronous motor designed with a 56Hz Frame and a 7/8" keyed shaft. It operates at 3450 RPM with a 25 Amp full load, featuring an Open Drip-Proof (ODP) enclosure and a 1.00 service factor. Notably, it supports CW/CCW rotation and is classified as an explosion-proof motor, making it suitable for specific environments.
Our take
This Uimoso 5HP motor stands out with its explosion-proof construction, which is a significant safety feature for certain workshop environments. The 230V single-phase power, 3450 RPM, and 25 Amp draw are standard and suitable for many compressor pumps. The CW/CCW reversible rotation is a convenient feature for compatibility, and the 7/8" keyed shaft is common. The Open Drip-Proof enclosure is acceptable for drier environments, but might not be ideal where moisture is prevalent. For its price, it offers good power and the added safety of an explosion-proof design, though verifying specific certifications would be wise.
Pros & Cons
Pros
- Explosion-proof motor construction
- Reversible CW/CCW rotation
- Standard 5 HP rated load
- 230V single-phase power
- 7/8" keyed shaft
Cons
- Open Drip-Proof enclosure
- 25 Amp full load may need dedicated circuit
Specifications
- Actual Rated Input Voltage 230V
- Full Load Amps 25Amp
- IEC Frame Size 56Hz Frame
- Rated Load (HP) 5HP
- AC Frequency Rating 60 Hz
- Special Motor Construction Explosion-Proof Motor
Show all 20 specifications
- Enclosure Type
- ODP (Open Drip-Proof)
- Base RPM
- 3450RPM
- Shaft Type
- 2.25" Shaft length
- AC Motor Type
- Induction/Asynchronous
- Shaft Diameter
- 7/8" Keyed shaft
- MPN
- ODPKYJDJ5HP54XUYV
- Brand
- Uimoso
- Reversible/Non-Reversible
- CW/CCW
- Current Type
- AC
- Unit Type
- Unit
- Service Factor
- 1.00
- Model
- 5HP Air Compressor Electric Motor
- AC Phase
- Single Phase
- Unit Quantity
- 1
